Group Management in Keycloak

Group Management in Check-in via Keycloak

Check-in allows you to organise your community based on two concepts:

  • Groups, representing a collection of users.
  • Roles, which are specific for each group and can be assigned to users individually.

Your community will be represented by a main group, often known as Virtual Organisation (VO). Inside your VO, you can have subgroups, and these can also have subgroups, creating a hierarchy.

Groups hierarchy

Operationally, a VO can be considered a group as any other, with the particularity that it has a special behaviour (VOs cannot be deleted, and their membership must be renewed at least once every year), and that it is the root group, the highest group in its hierarchy. The hierarchy can be expressed as a “group path”. For example, the group path of the “External” group of the image is /community.eu/Testers/External.

Groups and roles allow you to manage authorisation. When a user belongs to a group or is assigned a role, he/she receives an entitlement, which is a string describing a permission the user has. For example, an entitlement looks like:

urn:mace:egi.eu:group:engineering.vo.egi.eu:role=member#aai.egi.eu

representing that the user is a “member” of the VO “engineering.vo.egi.eu”. See “Authorisation using VO information” for more details about entitlements.

Using these entitlements, an application can then make authorisation decisions based on the membership in a group. For example, to establish that only members of the group “cloud operators” can create virtual machines and manage infrastructure.

Structure of a group

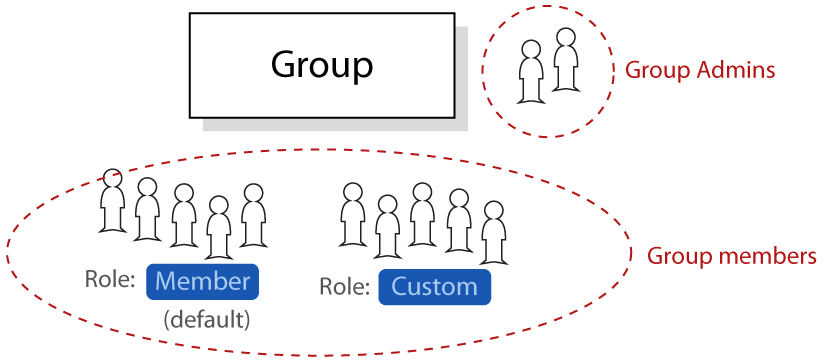

Groups have two types of users:

  • Group Admins, who manage all aspects of the group, as well as any sub-groups in the hierarchy, including roles, membership, and settings. Groups can have one or more administrators.
  • Group members, who are the users that belong to the group.

Groups structure with admins and members

Roles are defined per group and can be used to assign specific permissions within the group to users. Users inside a group can have one or more roles, but they must have at least one role within the group. By default, the role “member” exists for all groups.

The Group Admin of the VO is sometimes called “VO Manager”.

A Group Admin is also considered to be an administrator of all subgroups of the group (becoming an “indirect admin” for the subgroups), so these administration permissions propagate down the group hierarchy.

Group admin propagation
