Virtual Machine Images

Managing VM images in the EGI Cloud

Users of the EGI Cloud create Virtual Machines (VMs) on the providers. Those VMs are started from images: templates for the root volume of the running instances, i.e. operating system and applications available initially on a VM. The Artefact Registry collects the Virtual Machine Images available on the providers.

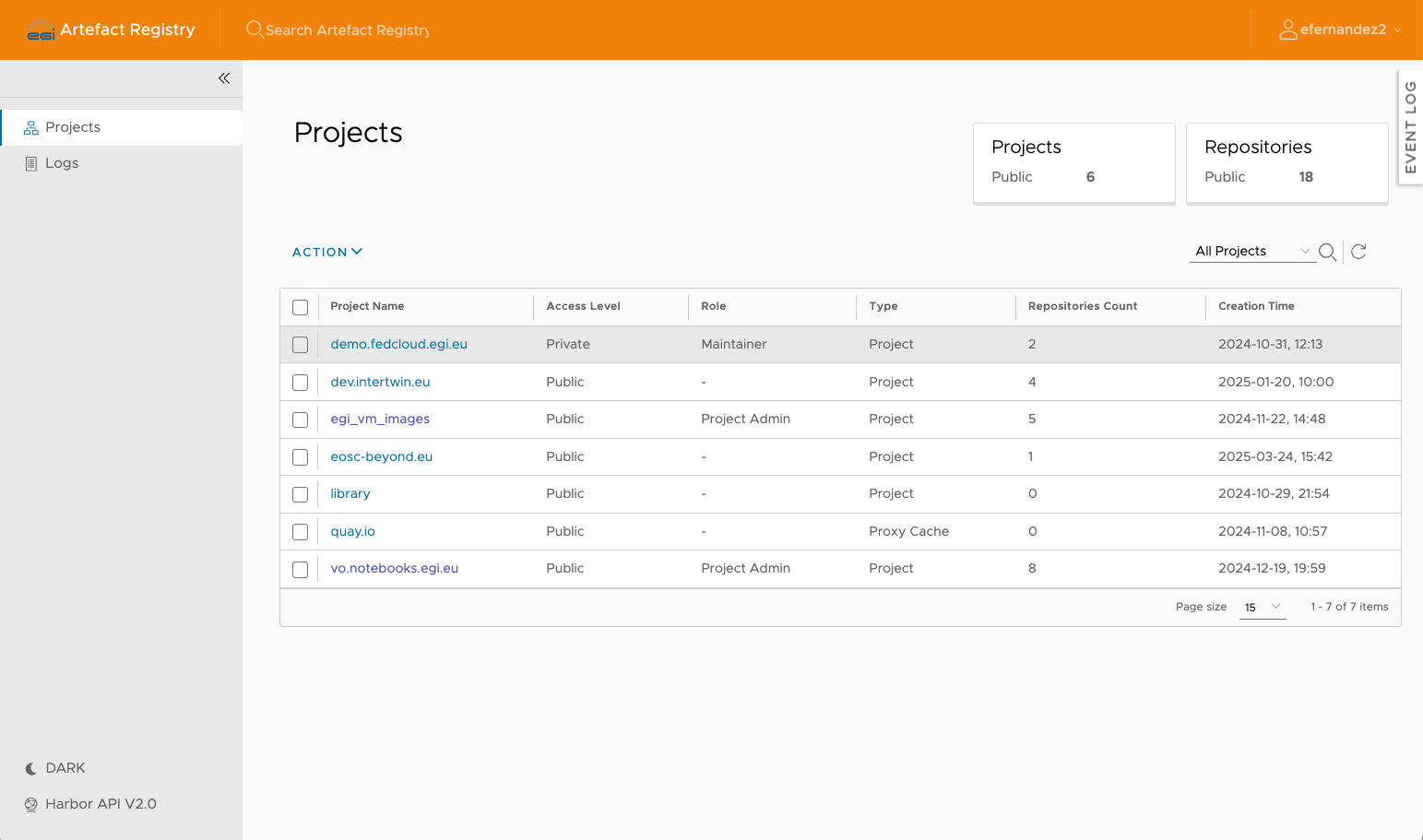

Artefact Registry

Artefact Registry

The Artefact Registry is a OCI-compliant catalogue of artefacts (including container images, VM images and helm charts) based on Harbor where users can upload their images.

Images in the Artefact Registry are organised into projects where images are pushed to. Access to projects is granted based on the membership and role of users within a VO. For a given project, only users with the appropriate roles can perform certain operations.

EGI images

EGI produces a set of basic images that are automatically synced to all the providers and available for all the supported VOs.

These images are built automatically using packer and Ansible and uploaded to a dedicated project named egi_vm_images at the Artefact Registry. Build scripts, packer templates, and ansible playbooks are available in the fedcloud-vmi-templates GitHub repository. The images are built regularly to avoid any potential vulnerabilities.

EGI images have minimal OS installation with cloud-init for contextualization and follow the registry.egi.eu egi_vm_images/<image name>:<version> naming convention.

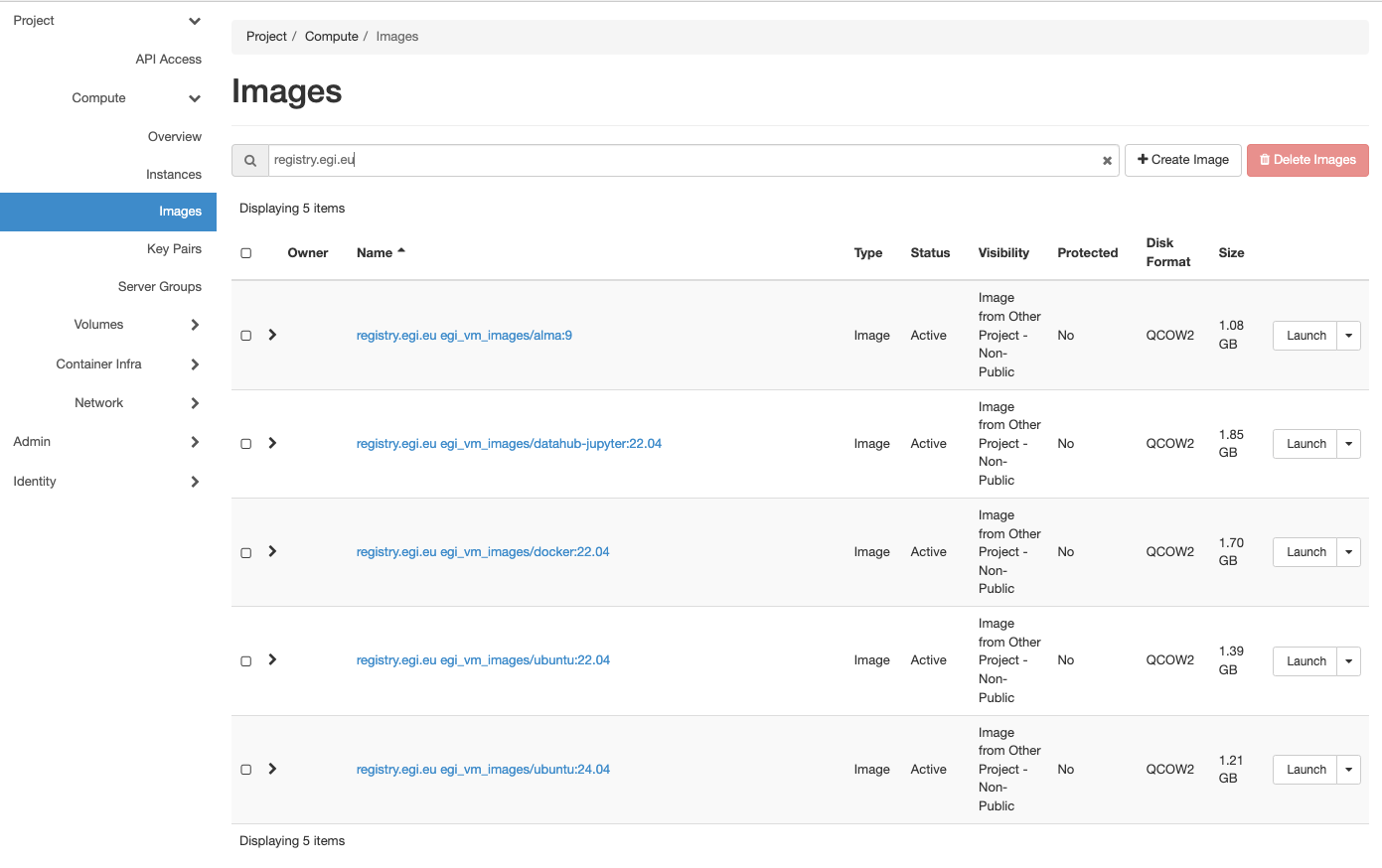

egi_vm_images at OpenStack

Custom VO images

Packaging your application in a custom VM image is a suggested solution in one of the following cases:

  • your particular OS flavor is not available;
  • installation of your application is very complex and time-consuming for being performed during contextualization; or
  • you want to reduce the number of 'moving-parts' of your software stack and follow an immutable infrastructure approach for deploying your application.

Custom VM images can be crafted in different ways. The two main possibilities are:

  • start from scratch, creating a virtual machine, installing an OS and the software on top of it, then taking the virtual machine OS disk as custom image; or
  • dump an existing disk from a running VM or physical server and modify it, if needed, to run on a virtualisation platform.

In this guide we will focus on the first option, because it tends to produce cleaner images and reduces the risks of hardware conflicts. Snapshotting may be also restricted by the cloud providers or by security policies.

Advantages:

  • Possibility to build the virtual disk directly from a legacy machine, dumping the contents of the disk.
  • Possibility to speed-up the deployment for applications with complex and big installation packages. This because you do not need to install the application at startup, but the application is already included in the machine.

Disadvantages:

  • Building a virtual disk directly from a legacy machine poses a set of compatibility issues with hardware drivers, which usually differs from a virtual and physical environment and even between different virtual environments.
  • You need to keep your machine updated. Outdated VM disk images may take a long time to startup due to the need to download and install the latest OS updates.
  • If you are using special drivers or you are not packaging correctly the disk, your custom VM image may not run (or run slowly) on different cloud providers based on different virtualisation technologies.
  • VM images on public clouds are sometimes public, thus be aware of installing proprietary software on custom images, since other users may be able to run the image or download it.
  • In general, the effort to implement this solution is higher than the basic contextualization.

Image size and layout

The larger the VM image, the longer it will take to be distributed to the providers and the longer it will take to be started on the infrastructure. As a general rule, always try to make images as smaller as possible following these guidelines:

  • DO NOT include (big) data in your image. There are other mechanisms for accessing data from your VM (block/ object storage, CVMFS)

  • DO NOT include (big) empty space or swap in your image. Extra space for your computation or swap can be added with block storage once the VM is booted or using VM flavors that have extra disk allocated for your VM.

  • DO NOT install un-needed software. Tools like GUI are of no-use in most cases since you will have no access to the graphical console of the VM.

  • DO adjust the size of the images as much as possible. As stated above, empty space can be allocated on runtime easily.

  • DO use compressed image formats, like qcow2 or vmdk (used in OVA) to minimize the size of the image. Preferred format for images in EGI is OVA as it's standardised.

  • DO fill with 0 the empty disk space of your image so when compressed it can be significantly reduced, e.g. using:

    dd if=/dev/zero of=/bigemptyfile bs=4096k
rm -rf /bigemptyfile

  • DO use a single partition (no /boot, no swap) for the disk layout and avoid LVM. This will allow the cloud provider to easily resize your partition when instantiated and to modify files in it if needed.

Contextualization and credentials

You should never include any kind of credentials on your images, instead you should use contextualization. cloud-init is a tool that will simplify the contextualization process for you. This is widely available as packages in major OS distributions and is supported by all the providers of the EGI Cloud and most of the commercial providers.

cloud-init documentation contains detailed examples on how to create users, run scripts, install packages and several other actions supported by the tool.

For complex setups, especially when applications involve multiple VMs it may be useful to use cloud-init to bootstrap some Configuration Management Software that will manage the configuration of the VMs during runtime.

Security

  • Always remove all default passwords and accounts from your VM.
  • Disable all services unless necessary for the intended tasks.
  • Make sure the firewall configuration (iptables for Linux, also on IPv6) is minimally open.
  • Put no shared credentials (passwords) in any image.

You should also follow best practice guides for each service that's exposed to the outside world (e.g. tomcat).

See also AWS security Best Practices

Tools

Whenever possible, automate the process of creating your images. This will allow you to:

  • Get reproducible results
  • Avoid tedious manual installation steps
  • Quickly produce updated versions of your images

Check out the fedcloud-vmi-templates GitHub repository for examples of images that can be built in a completely automated workflow using packer and GitHub Actions.

Uploading to the registry

The Artefact Registry can store arbitrary binary artifacts and those matching the expected metadata will be synced to the sites. For uploading the images, any OCI registry compliant tool can be used. We rely on oras for uploading the EGI images.

Images must have a eu.egi.cloud.tag annotation in their manifest for them to be synced and the following additional annotations are expected to be available:

  • org.openstack.glance.disk_format: with the disk format of the image (e.g. raw or qcow2)
  • org.openstack.glance.container_format: with the glance container format (bare should be used in most cases), see glance documentation.
  • eu.egi.cloud.image.title: Human readable title.
  • eu.egi.cloud.description: A description of the image.
  • org.openstack.glance.architecture: Image architecture.
  • org.openstack.glance.os_distro: OS distro name (e.g. ubuntu).
  • org.openstack.glance.os_version: OS version (e.g. 24.04 for Ubuntu 24.04).
  • org.openstack.glance.os_type: OS type (e.g. linux).

For the upload, you need to:

  1. Login to the registry, you can find credentials in your registry profile:
oras login -u <user> registry.egi.eu
  1. Prepare an annotation file with the expected metadata. You can find below an example for an AlmaLinux image file named alma-9.qcow2. It also includes a $manifest entry with annotation of the manifest itself.
{
  "$manifest": {
    "org.opencontainers.image.revision": "7b98c834862f2e7e342fad7f9e175ea8c74aa4f3",
    "org.opencontainers.image.source": "https://github.com/EGI-Federation/fedcloud-vmi-templates"
  },
  "alma-9.qcow2": {
    "eu.egi.cloud.image.title": "EGI Alma 9 image",
    "org.openstack.glance.architecture": "x86_64",
    "org.openstack.glance.os_distro": "alma",
    "org.openstack.glance.os_type": "linux",
    "org.openstack.glance.os_version": "9",
    "org.openstack.glance.disk_format": "qcow2",
    "eu.egi.cloud.tag": "2025-06-10-7b98c834",
    "org.openstack.glance.container_format": "bare"
 }
}
  1. Upload the image and the annotation file:
oras push --annotation-file <annotation json> \
     registry.egi.eu/<project_name>/<repository>:<tag> \
     <image file>
